Part Number:
609428, 7678, 608897, 624317, 606971, SOL-1019
Replace Part Number:
M008512000, 684-3681-012-14, 684368101214, 684-3681-012-12

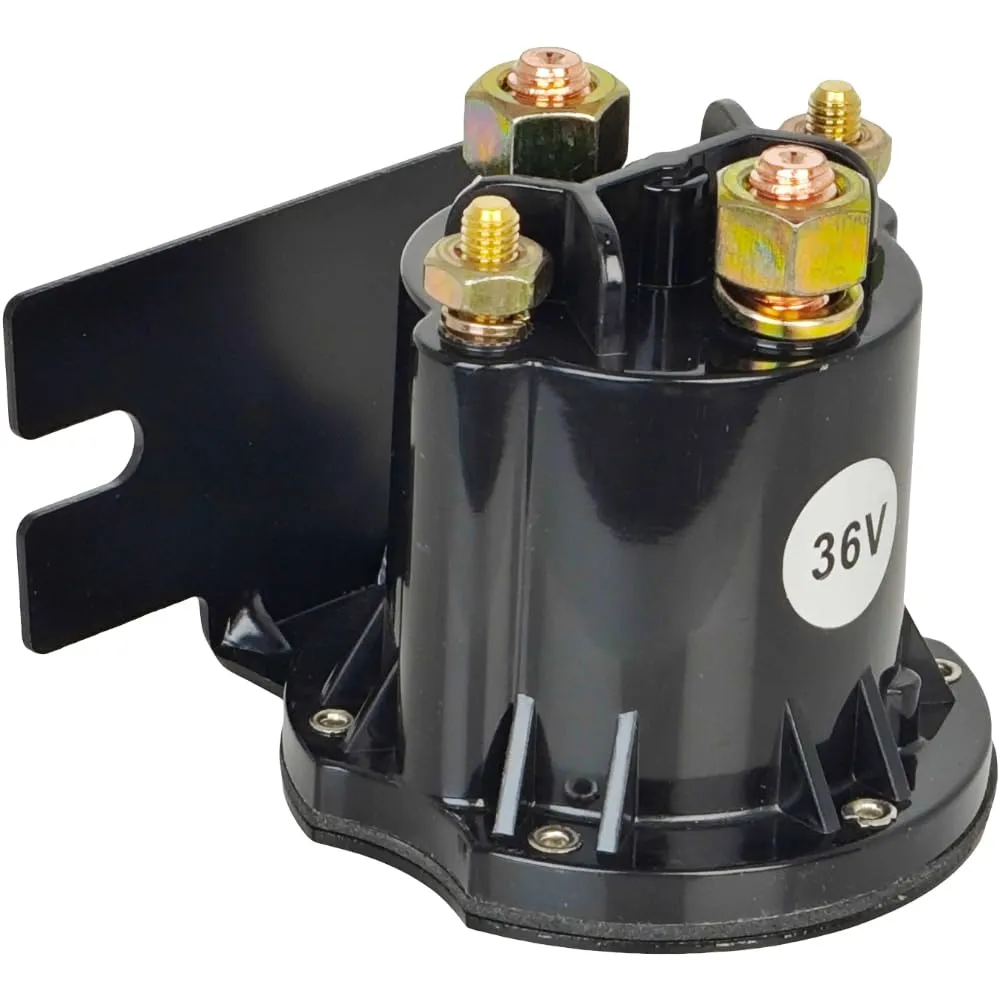

Compatible with EZGO RXV 2008 & up Golf Carts Vehicles

Used as an electrical inductor in vehicle circuits
Specification:
Voltage: 36V
Terminals: 4
Duty: 100% Continuous
Contacts Material: Copper
Sealed Design: Sealed design protects against dust and water jets.
(2) 5/16-24 & (2) Non-Grounded 10-32 Studs
Flat, long L-bracket.
.
This model is specifically sold as a replacement part for Golf Carts 609428. Do not use this contactor for any other purpose.

If your application requires a sealed or submersible design, you must have this one.Sealed design protects against dust and water jets. IP67 environmental rating allows it to be submerged into 1 meter of water for a period of 30 minutes. It is not intended to operate under water. If this unit is exposed to water and completely dried off afterwards, it should be capable of being energized again.

Mounting Instructions:
1. Select a desired mounting location
2. Using the contactor as a template, mark the centers of the mounting holes.
3. Using a ¼” drill bit, drill the holes marked in the previous step.
4. Mount the contact using ¼’ bolts and nuts.
5. Wire the relay according to the wiring diagram.

• Product Dimensions ‏ : ‎ 3.58 x 3.03 x 3.03 inches; 14.08 ounces
• Date First Available ‏ : ‎ July 1, 2024
• Manufacturer ‏ : ‎ XYZIL
• Country of Origin ‏ : ‎ China
