• The ROP Shop | Pressure Washer Pump for Campbell Hausfeld PW154915LE, PW1753V1LE, PW1755V5LE
• Specs - Pump - Max PSI: 3100. Max GPM: 2.5. Max RPM: 3400. Shaft: 7/8". 3-Bolt Pattern: 7 11/16” x 6 3/16” x 6 7/16” & 4" Center to Each Outer Hole. Max Temp: 140° F (60° C). Inlet: Standard Garden Hose. Outlet: 22mm Male. Plug - Female Pipe Thread: M22 (14mm). QC Plug: 3/8". Coupler - Male Pipe Thread: M22 (14mm). Female QC: 3/8". Hose - Inner Diameter: 1/4" (6mm). Outer Diameter: 3/8" (9mm). Length: 5'. Keyway - Overall Dimensions: 3/16" x 1/4" x 1 1/8"; Refer to images for more information

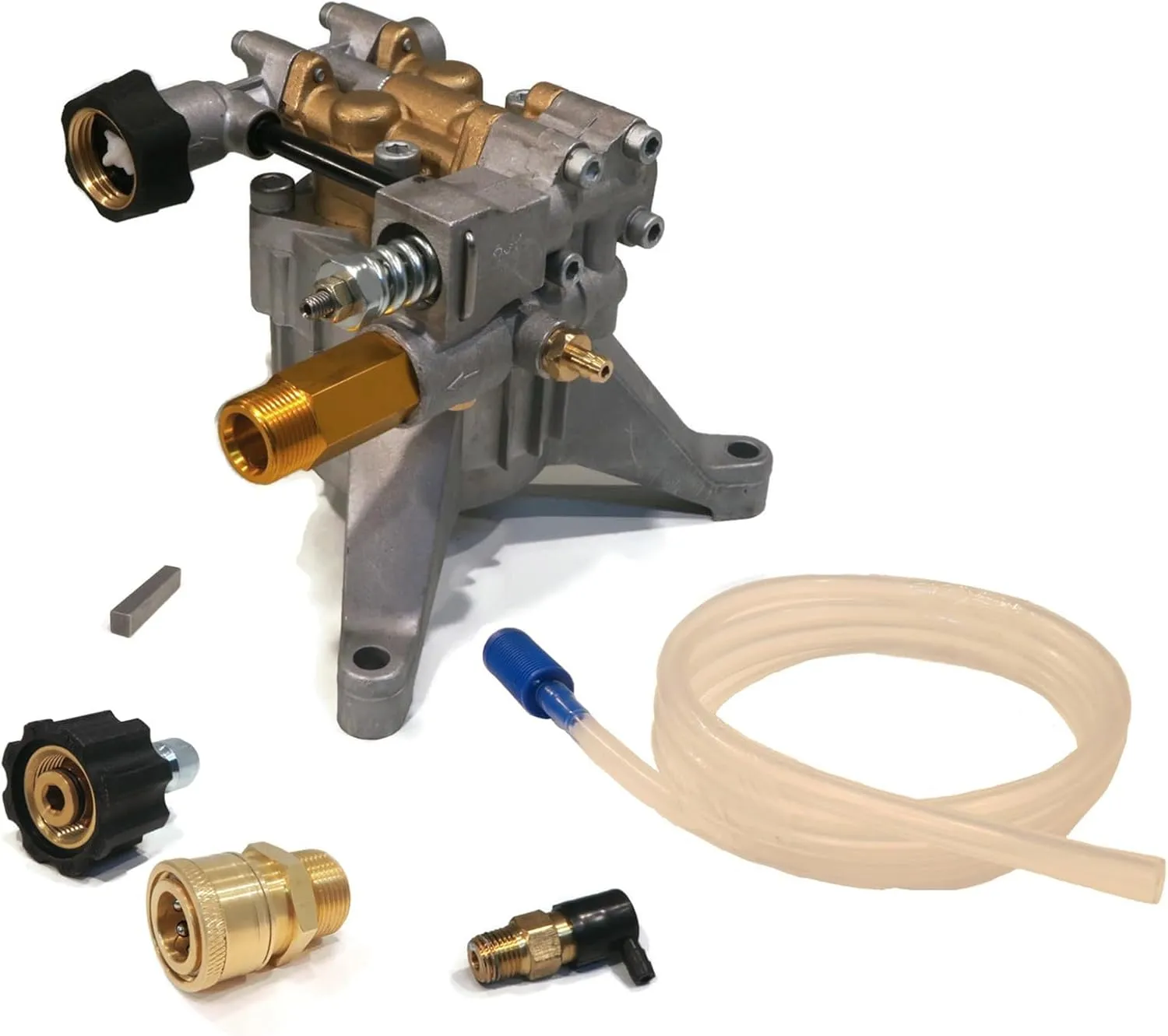

• Includes - (1) Pressure Washer Pump with Chemical Injector, Unloader Valve, Thermal Release Valve & Outlet Tube (all come pre installed), (1) Keyway and (1) Chemical Hose with Filter, (1) Quick-Connect Plug, & (1) Quick-Connect Coupler; comes as shown in the first image
• This pump may require 1/2" spacers when installed, depending on motor configuration. Spacers are used in the case that the pump arm(s) hits the engine or can't reach the under side of frame such as the engine has a longer shaft. If spacers aren't used when installing, the pump legs will break from stress (spacers & longer bolts are NOT included). If not using the new keyway, be sure to transfer the old square key or else the pump will not build pressure. Pump head can be flipped
• This pump mounts vertical and is a front facing (water inlets/outlets come out of the front of the engine). Pump needs at least 6HP to handle PSI. This is a sealed unit, no oil maintenance required. Brass outlet tube MUST be removed if quick-connect is being used. Please note it is not recommended to run any pressure washer pump above its maximum PSI rating. Doing so can result in damage to the pump (not covered by warranty) and/or serious bodily injury
