• The ROP Shop | Pressure Washer Pump Assembly for Ryobi RY80931 Mi-T-M CV-2200 Wel-Bilt M157720
• Specs - Pump - Max PSI: 2800. Max Flow: 2.3 GPM. Max Pump Speed: 3400 RPM. Shaft Diameter: 7/8". 3 Bolt Pattern: 7 11/16" x 6 3/16" x 6 7/16" & 4" Center to Each Outer Hole. Max Temp: 140° F. Inlet Connection Type: Standard Garden Hose. Outlet Tube Connection: 22mm Male. Thermal Valve - Male Pipe Thread: 1/4". Max Inlet PSI: 125. Chemical Hose - Inner Diameter: 1/4" (6mm). Outer Diameter: 3/8" (9mm). Length: 5'. Keyway - 3/16" x 1/4" x 1 1/8". Refer to images 2 and 3 for more information

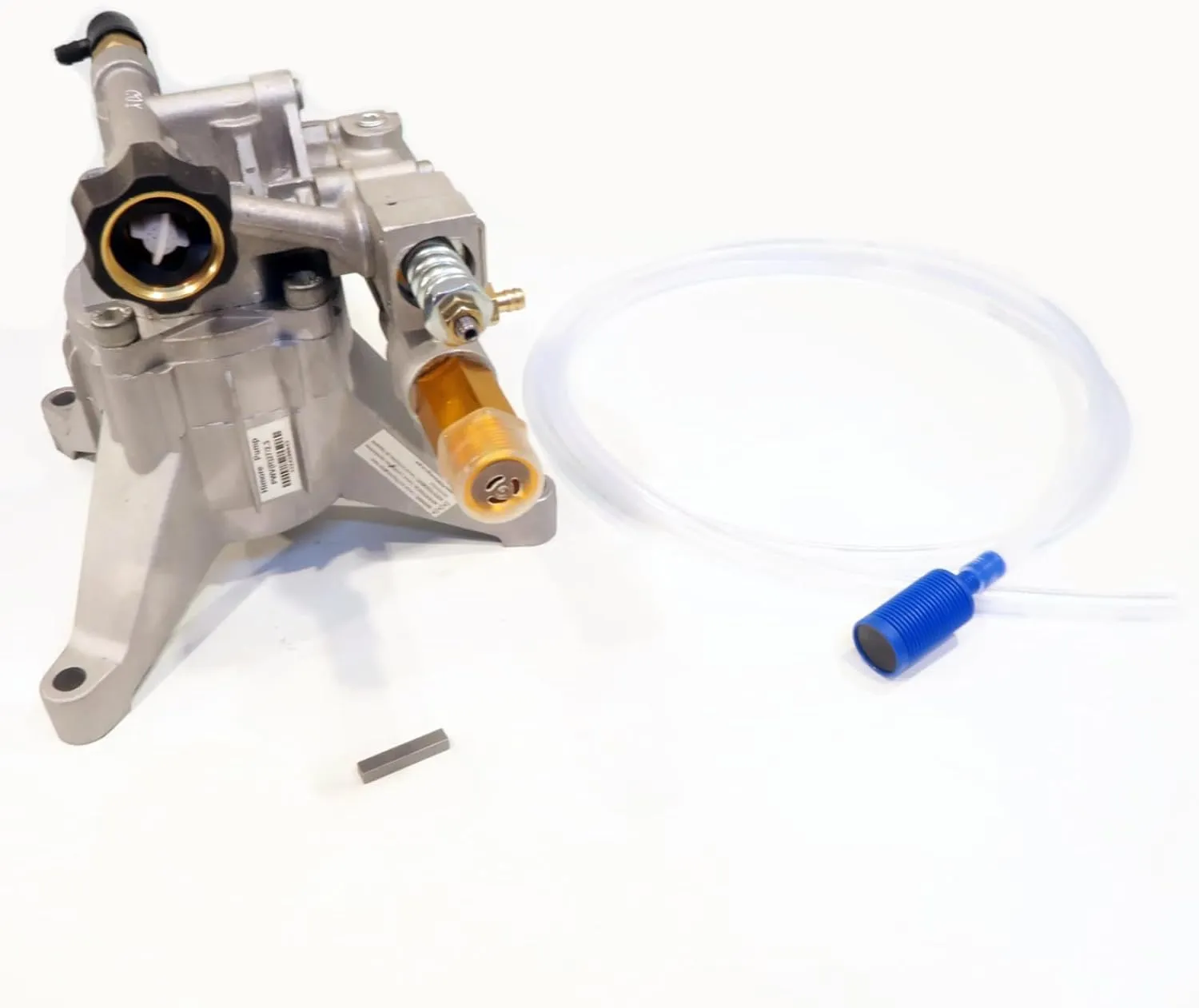

• Includes - (1) Pressure Washer Pump with Chemical Injector, Unloader Valve, & Outlet Tube, (1) Chemical Solution Siphon Hose with Filter, (1) Thermal Release Valve & (1) Keyway; comes as shown in the first image
• This pump may require 1/2" spacers when installed, depending on motor configuration. Spacers are used in the case that the pump arm(s) hits the engine or can't reach the under side of frame such as the engine has a longer shaft. If spacers aren't used when installing, the pump legs will break from stress (spacers & longer bolts are NOT included). Brass outlet tube MUST be removed if quick-connect is being used. Valve Installs in bypass line or thermal port on inlet side of pump
• This pump mounts vertical and is a rear facing (water inlets/outlets come out of the rear of the engine). Pump needs at least 5.5HP to handle PSI. Pump head can be flipped. Thermal relief valve comes pre-intalled. This is a sealed unit, no oil maintenance required. Please note it is not recommended to run any pressure washer pump above its maximum PSI rating. Doing so can result in damage to the pump (not covered by warranty) and/or serious bodily injury
