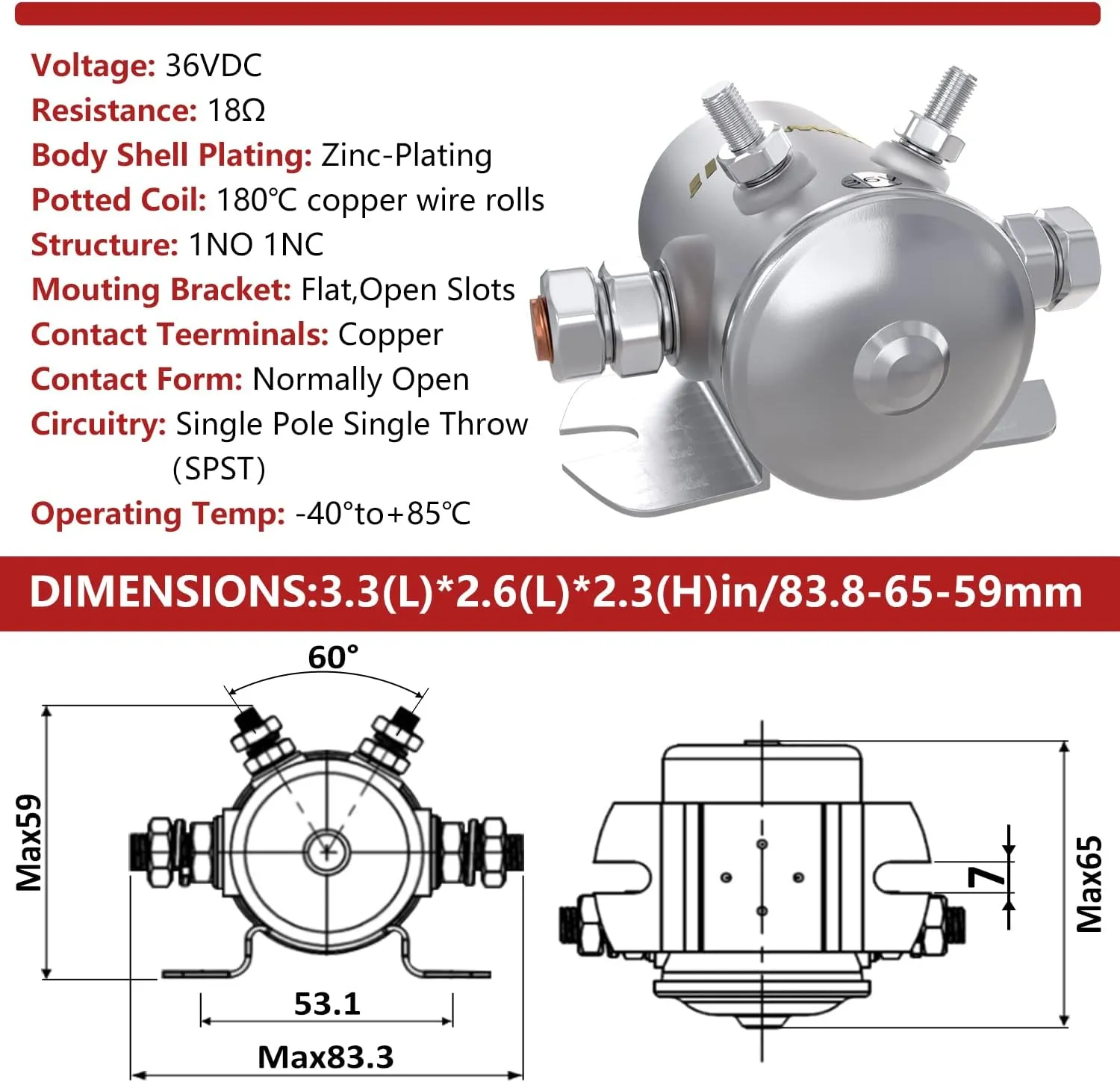

- 【Specification】4 terminal Heavy-duty Solenoid with Copper Contacts，Voltage: 36VDC; Resistance: 18Ω; Max Transient Flash Current: 200Amp; Continuous Working Current: Under 80Amp; Contact Studs: 5/16 -24 Studs Standard & Long; Bracket mounting: Holes 5/16 x 19/32 2-13/64 on Center.
- 【High Quality】:The coil uses 180 ℃ copper wire, the electromagnetic relay is made of high-quality components,the contact: normally open (NO)/36VDC with 2 copper point, the galvanized outer layer and the inside of the canned coil, suitable for use in any environment,Sealed Unit Protects Solenoid From The Elements Helping Prevent Corrosion.100% OEM Match and Replacement.
- 【Application】Acts as the conduit between the golf car battery and starter generator, Copper alloy contact terminals Insulated base w/ steel housing / MAKE SURE YOUR SMALL DIODE IS IN THE CORRECT DIRECTION WITH THE LINE POINTING TO THE POSITIVE SIDE.
- 【INSTIALL】：One side goes to Battery, opposite side to starter, top screw which is smaller goes to switch or key start only. It is already grounded internal.
- 【Replaces Part Number】# 70-120224、3016、11761-G1、27855-G01、27855-G02、31680-G1、SAS-4302、SAS-4303、SAS-5303A、SAS4302、Cole Hersee 24080、EZ-Go 11761GA、Prestolite 15-242、15-243、15-334。
