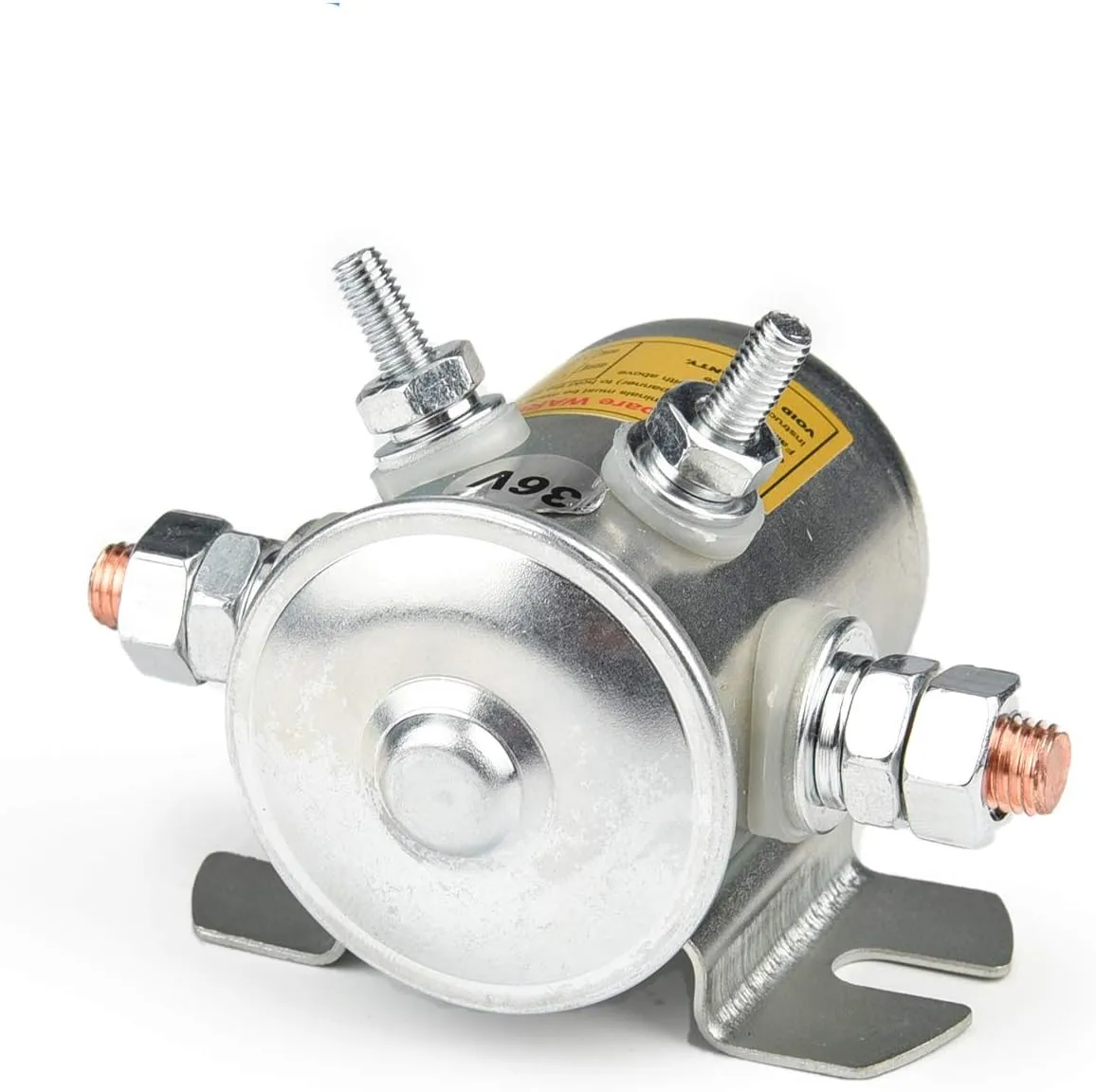

• Voltage 36 Volt,4 terminal Heavy-duty Solenoid with Copper Contacts,Flat Mounting Bracket/ Apply For Marathon Ezgo TXT Series ,1980-2010 Electric Golf Cart,
• Replaces Part #'s: 70-120224, 3016, 11761-G1, 27855-G01, 27855-G02, 31680-G1,Cole Hersee 24080, E-Z-Go 11761GA
• Resistance is 18Ω,Max Transient current can be 200A, but Continuous Working Current recommend 80amp/ Dimensions : 2) 5/16-24 Contact Terms/ 2) 10-32 Terminal/ Mounting holes: 5/16 x 19/32, 2-13/64 on centers
• Acts as the conduit between the golf car battery and starter generator, Copper alloy contact terminals Insulated base w/ steel housing / MAKE SURE YOUR SMALL DIODE IS IN THE CORRECT DIRECTION WITH THE LINE POINTING TO THE POSITIVE SIDE.
• WARNING: This is a start solenoid only finish work when your key start, if be Continuous Duty,can work 5 minutes under 150Amp, but NEED BREAK otherwise will be too hot to burned or fired
