- TRS replacement 3100 PSI Vertical Brass Head Pressure Washer Pump FH, 2.5 GPM, 7/8" Shaft with Keyway, Chemical Hose & Filter
- Specs - Pump - Max Pressure: 3100 PSI. Max Flow: 2.5 GPM. Max Pump Speed: 3400 RPM. Shaft Diameter: 7/8" Shaft. 3 Bolt Pattern: 7 11/16” x 6 3/16” x 6 7/16” & 4" Center to Each Outer Hole. Max Water Temperature: 140° F. Inlet Connection Type: Standard Garden Hose. Outlet Tube Connection: 22mm Male. Chemical Hose - Inner Diameter: 1/4" (6mm). Outer Diameter: 3/8" (9mm). Length: 5'. Material: Rubber. Keyway - Overall Dimensions: 3/16" x 1/4" x 1 1/8"; Refer to images 2 and 3 for more information

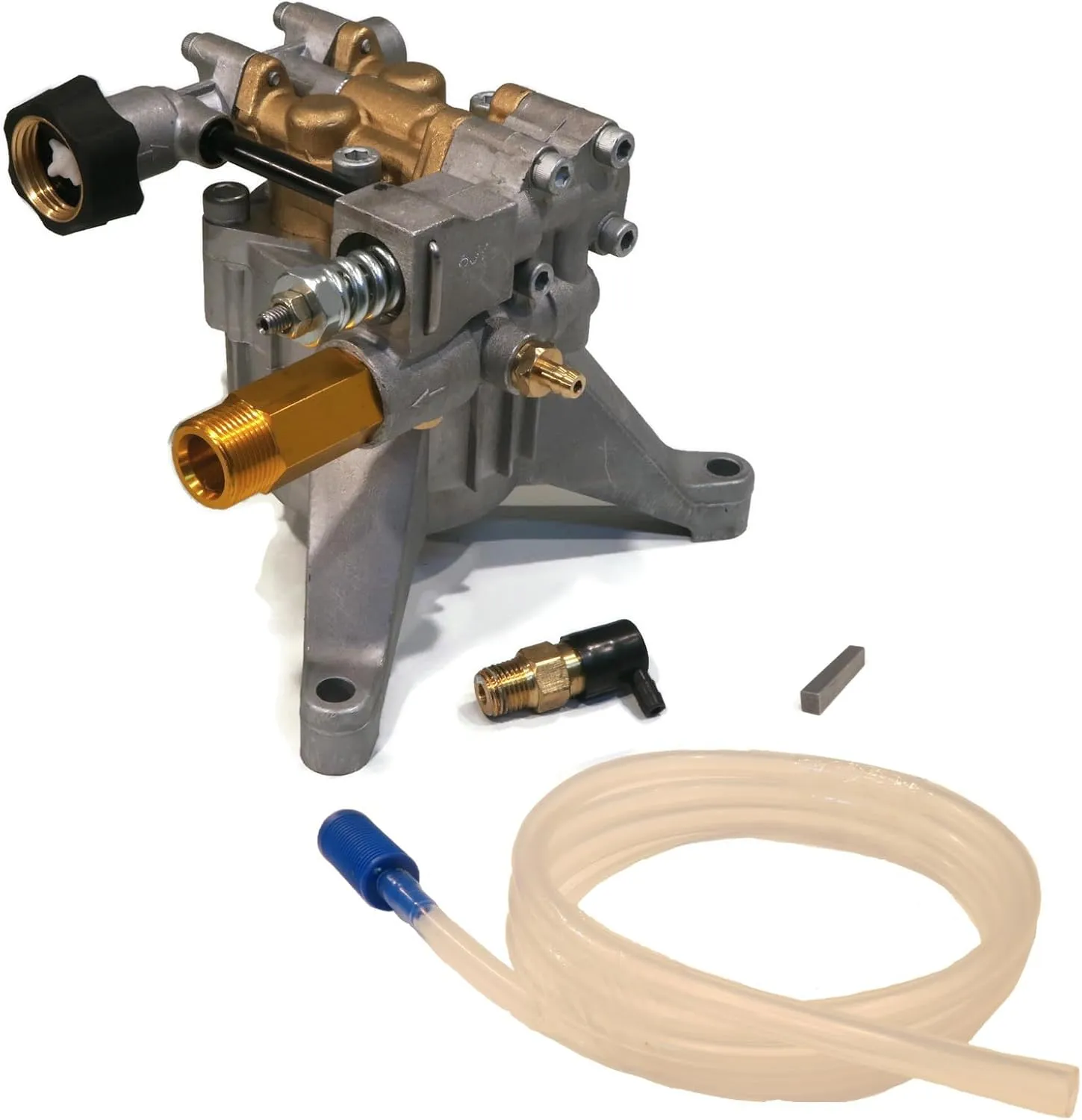

- Includes - (1) Pressure Washer Pump with Chemical Injector, Unloader Valve, Thermal Release Valve & Outlet Tube (all come installed), (1) Keyway and (1) Chemical Hose with Filter; comes as shown in the first image
- This pump may require 1/2" spacers when installed, depending on motor configuration. Spacers are used in the case that the pump arm(s) hits the engine or can't reach the under side of frame such as the engine has a longer shaft. If spacers aren't used when installing, the pump legs will break from stress (spacers & longer bolts are NOT included). If not using the new keyway, be sure to transfer the old square key or else the pump will not build pressure
- This pump mounts vertical and is a front facing (water inlets/outlets come out of the front of the engine). Pump needs at least 6HP to handle PSI. Pump head can be flipped. Thermal relief valve comes pre-intalled. This is a sealed unit, no oil maintenance required. Please note it is not recommended to run any pressure washer pump above its maximum PSI rating. Doing so can result in damage to the pump (not covered by warranty) and/or serious bodily injury
